HomeProducts Aluminum IEC series three phase motor MS3 Series IE3 Efficiency Aluminum Housing Three-Phase Aynchronous Motors

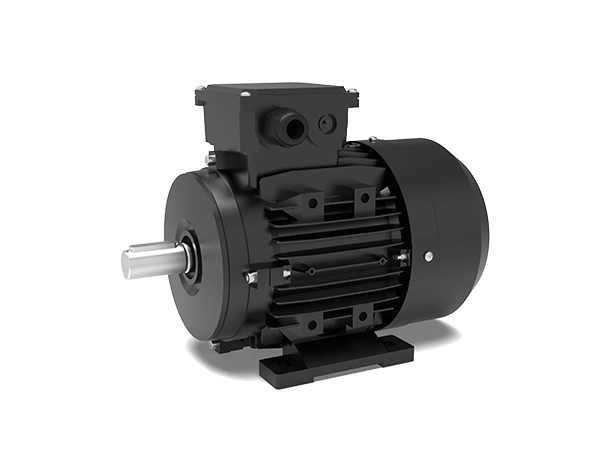

MS3 Series IE3 Efficiency Aluminum Housing Three-Phase Aynchronous Motors

MS3 Series IE3 Efficiency Aluminum Housing Three-Phase Aynchronous Motors

  • Models
  • Overview
  • Features
  • Downloads
models
  • Search
Model Output
(kW) 		Current
(A) 		Speed
(r/min) 		Eff. 100% Eff. 75% Eff. 50% Power factor
(Φ) 		Tn
(N.m) 		Operation
MS3 801-2 0.75 1.77 2880 80.7 80.4 77.6 0.76 2.49
Specification
Specification
MS3 802-2 1.1 2.49 2870 82.7 82.4 79.7 0.77 3.66
Specification
Specification
MS3 90S-2 1.5 3.17 2890 84.2 83.8 81.1 0.81 4.96
Specification
Specification
MS3 90L-2 2.2 4.45 2880 85.9 86.3 84.9 0.83 7.30
Specification
Specification
MS3 802-4 0.75 1.90 1430 82.5 82.8 80.7 0.69 5.01
Specification
Specification
MS3 90L-4 1.5 3.57 1440 85.3 85.6 84 0.71 9.95
Specification
Specification
MS3 90S-6 0.75 2.08 940 78.9 79.1 76 0.66 7.62
Specification
Specification
MS4 90S0-2 1.1 2.30 2900 85.2 83.9 81 0.81 3.62
Specification
Specification
Overview

MS series aluminum housing three-phase asynchronous motors with latest design in entirety are made of ed quality materials and conform to the IEC standard.

MS motors have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently, while with low noises, little vibration and at the same time light weight and simple construction. These series motors can be used for general drive.

Features

Features

    • MS series aluminum housing three-phase asynchronous motors with latest design in entirety are made of ed quality materials and conform to the IEC standard.
    • MS motors have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently, while with low noises, little vibration and at the same time light weight and simple construction. These series motors can be used for general drive.

APPLICATIONS

    • MS series aluminum housing three-phase asynchronous motors with latest design in entirety are made of ed quality materials and conform to the IEC standard.
    • MS motors have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently, while with low noises, little vibration and at the same time light weight and simple construction. These series motors can be used for general drive.
Downloads
Techtop Introduction
E-booklet
Product brochure
Shanghai Top Motor Co., Ltd., one of leading motor manufacturers in China with a famous brand, TECHTOP, specializes in production and sale of electrical products, which are electric motors conformed to IEC, NEMA, GOST standard, permanent magnet motor, water pumps, generators, generating sets and the likes.
