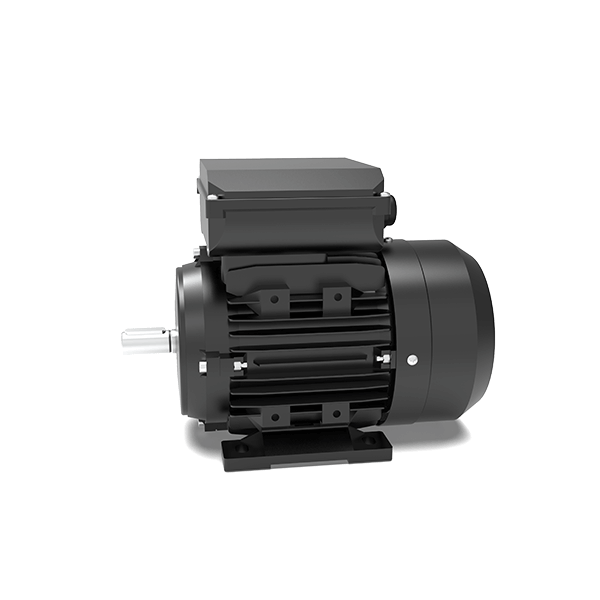

ML Series Single-Phase Capacitor Start and Capacitor Run Motor

ML Series Single-Phase Capacitor Start and Capacitor Run Motor

models

  • Search
Model Output
(kW)
Current
(A)
Speed
(r/min)
Eff. 100% Eff. 75% Eff. 50% Power factor
(Φ)
Tn
(N.m)
Operation
ML631-2 0.18 1.36 2820 62 0.93 0.61
ML632-2 0.25 1.71 2800 67.5 0.94 0.85
ML633-2 0.37 2.39 2830 71 0.95 1.25
ML711-2 0.37 2.40 2780 70.5 0.95 1.27
ML712-2 0.55 3.31 2790 74.5 0.97 1.88
ML713-2 0.75 4.38 2810 75.9 0.98 2.54
ML801-2 0.75 4.25 2840 77.5 0.99 2.52
ML802-2 1.1 6.08 2850 79.5 0.99 3.69
ML803-2 1.5 8.47 2820 77.8 0.99 5.08
ML90L2-2 3 16.00 2860 82.3 0.99 10.00
ML631-4 0.12 1.01 1380 54.5 0.95 0.83
ML632-4 0.18 1.36 1340 60 0.96 1.28
ML633-4 0.25 1.83 1380 61.1 0.97 1.73
ML711-4 0.25 1.78 1415 63 0.97 1.69
ML712-4 0.37 2.53 1410 65.5 0.97 2.51
ML713-4 0.55 3.55 1390 68 0.99 3.78
ML800-4 0.37 2.52 1420 66.5 0.96 2.49
ML801-4 0.55 3.52 1420 71.5 0.95 3.70
ML802-4 0.75 4.56 1420 73 0.98 5.04
ML803-4 1.1 6.57 1400 73.5 0.99 7.50
ML90L2-4 2.2 12.10 1415 80.5 0.98 14.80
ML100L2-4 3 16.40 1445 83 0.96 19.83
ML112M2-4 4 21.30 1435 83.5 0.98 26.62
ML632-6 0.12 1.18 910 45.5 0.97 1.25
ML711-6 0.18 1.34 930 60 0.97 1.85
ML712-6 0.25 1.93 940 58 0.97 2.54
ML801-6 0.37 2.48 935 67 0.97 3.78
ML802-6 0.55 3.47 935 71 0.97 5.62
ML112M-6 2.2 12.00 965 82 0.97 21.77
Overview

ML series aluminum housing single-phase dual-capacitor asynchronous motors,with latest design in entirety, are made of ed quality materials and conform to the IEC standard. ML motors have good performance,safety and reliable operation,the multiple of starting torque is up to 2.5.

These series motors are suitable for the occasion where the requirements of big starting torque and high over load, such as air-compressors, pumps, and many other small machines.

Features

Features

    • ML series aluminum housing single-phase dual-capacitor asynchronous motors,with latest design in entirety, are made of ed quality materials and conform to the IEC standard. ML motors have good performance,safety and reliable operation,the multiple of starting torque is up to 2.5.
    • These series motors are suitable for the occasion where the requirements of big starting torque and high over load, such as air-compressors, pumps, and many other small machines.

APPLICATIONS

    Content coming soon – stay tuned!
