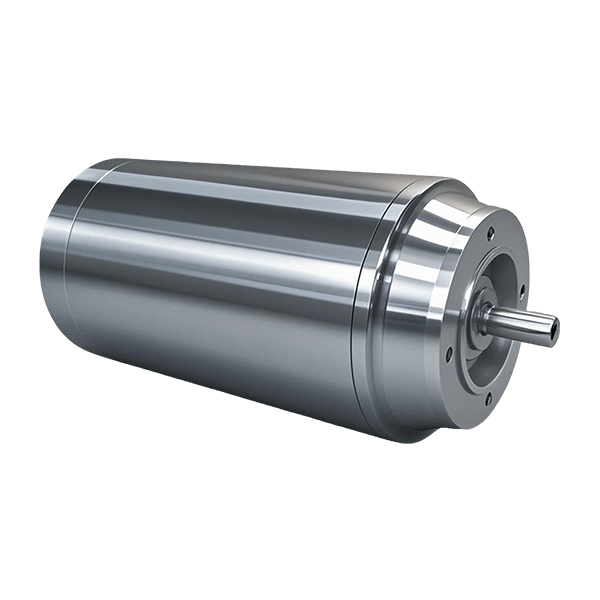

TSSN Series Hygienic Motors

TSSN Series Hygienic Motors

models

  • Search
Model Output
(kW)
Current
(A)
Speed
(r/min)
Eff. 100% Eff. 75% Eff. 50% Power factor
(Φ)
Tn
(N.m)
Operation
Overview

Content coming soon – stay tuned!

Features

Features

    • 0,12..1,5kW – 4 poles
    • IEC 63..90 B5 B14
    • △/Y 230/400V/50Hz
    • Protection grade IP69K
    • Protection grade IP69K
    • Class F – IC410 - SERVICE S1
    • Stainless steel 316L
    • Efficiency class IE3

APPLICATIONS

    Motors in stainless steel AISI 316L for the food, pharmaceutical industries and other applications which require extreme cleaning and frequent washing.

    The entire design of the motor TSSN has been studied so that the processing waste can be washed away without leaving residues and the motor can be used with trust in food and pharmaceutical production processes where it is essential to ensure maximum hygiene.

    When the processing machines of food, beverage, pharmaceutical and cosmetic products are washed, the motors, together with other mechanical parts are often exposed to high pressure water jets, high temperatures and aggressive detergents.

    The motors TSSN in stainless steel of TECHTOP can resist to these operating conditions, which normally damage other types of motors and can even contaminate the final product.

    Unlike the standard motors, in fact, the TSSN range does not have cooling wings, the surface is completely rust-resistant and without paint, and the marking is engraved on the outer back cover to reduce areas where bacteria can form.

Aluminum Cast Iron Others
Click to see more
